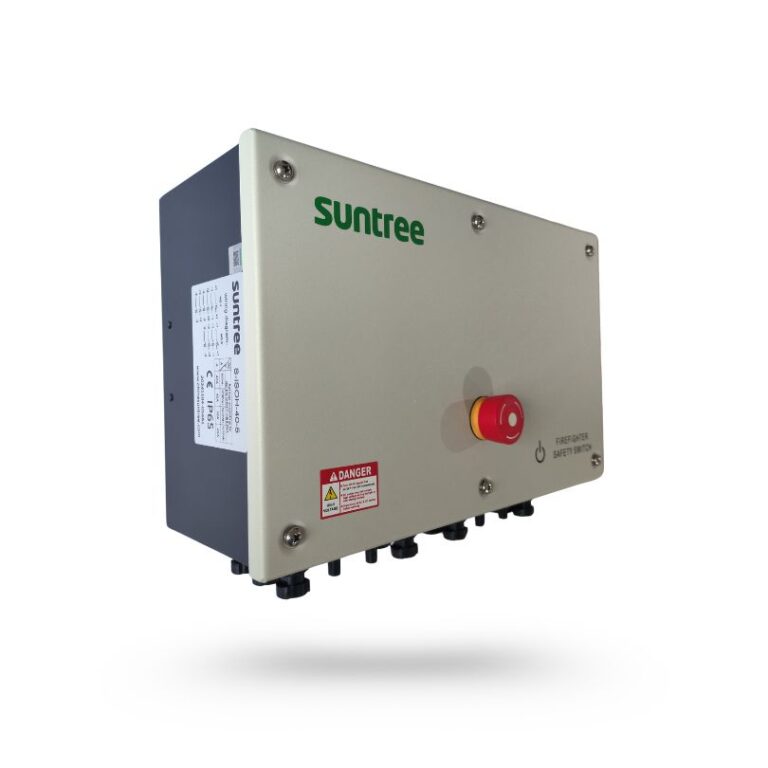

SUNTREE RAPID SHUTDOWN DEVICE
PRODUCT ADVANTAGES
- 1-10 STRINGS AVAILABLE
- UP TO 40A
- UP TO 1500V
- CE CERTIFICATION
- IP65 PROTECTION & ANTI UV
- APP REMOTE CONTROL
- SHUTDOWN FEEDBACK SIGNAL
- AUTO SHUTDOWN EXCEEDING 70C
- 10000 MECHANICAL LIFE CYCLES
- LSOLATOR WITH CE,CB,TUV,SAA

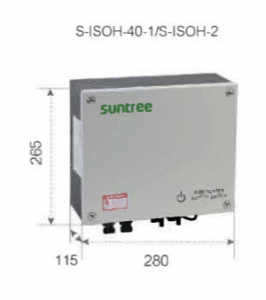

DIMENSIONS (mm)
- S-ISOH-40-3: 300*280*115
- S-ISOH-40-4: 350*280*115
- S-ISOH-40-5: 348*270*137
- S-ISOH-40-6: 348*270* 137
- S-ISOH-40-7: 348*330*173
- S-ISOH-40-8: 348*330*173
- S-ISOH-40-9: 348*330* 195
- S-ISOH-40-10: 348*330*195
ELECTRICAL PARAMETERS
|
Product Model
|
S-ISOH-40-1
|
S-ISOH-40-2
|
S-ISOH-40-3
|
S-ISOH-40-4
|
S-ISOH-40-5
|
S-ISOH-40-6
|
S-ISOH-40-7
|
S-ISOH-40-8
|
S-ISOH-40-9
|
S-ISOH-40-10
|
|---|---|---|---|---|---|---|---|---|---|---|
|
Number of Strings
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
Max DC Voltage
|
1500VDC
|
|||||||||
|
Max DC current
|
40A
|
|||||||||
|
Parameteres
|
1500V26A, 1250V32A, 1000V40A,800V40A,600V40A
|
|||||||||
|
DC connector
|
MC4
|
|||||||||
|
Power supply type
|
AC single phase
|
|||||||||
|
Nominal voltage
|
230VAC
|
|||||||||
|
Operating voltage
|
100-270VAC
|
|||||||||
|
Nominal frequency
|
50 Hz/60 Hz
|
|||||||||
|
Operating Frequency
|
47-63 HZ
|
|||||||||
|
Nominal current
|
30mA
|
|||||||||
|
Max current
|
300mA
|
|||||||||
|
AC connector
|
Plug-in
|
|||||||||
|
Protection degree
|
IP65
|
|||||||||
|
Protection level
|
Class II
|
|||||||||
|
Certification
|
CE
|
|||||||||
|
Switch according to
|
EN 60947-3
|
|||||||||
|
Number of operations
|
10000
|
|||||||||
|
N. of operations under load
|
1500
|
|||||||||
|
Operating temperature
|
-20°C-70°C
|
|||||||||
|
Temperature sensor trigger
|
70°c
|
|||||||||
|
Warranty
|
5 years
|
|||||||||
|
Weight
|
2950 g
|
3130 g
|
3440 g
|
3950 g
|
4700 g
|
5200 g
|
5800 g
|
6300 g
|
6500 g
|
7000 g
|
