Suntree Indonesia
Solusi Electrical Protection Terpercaya untuk Sistem PLTS Anda

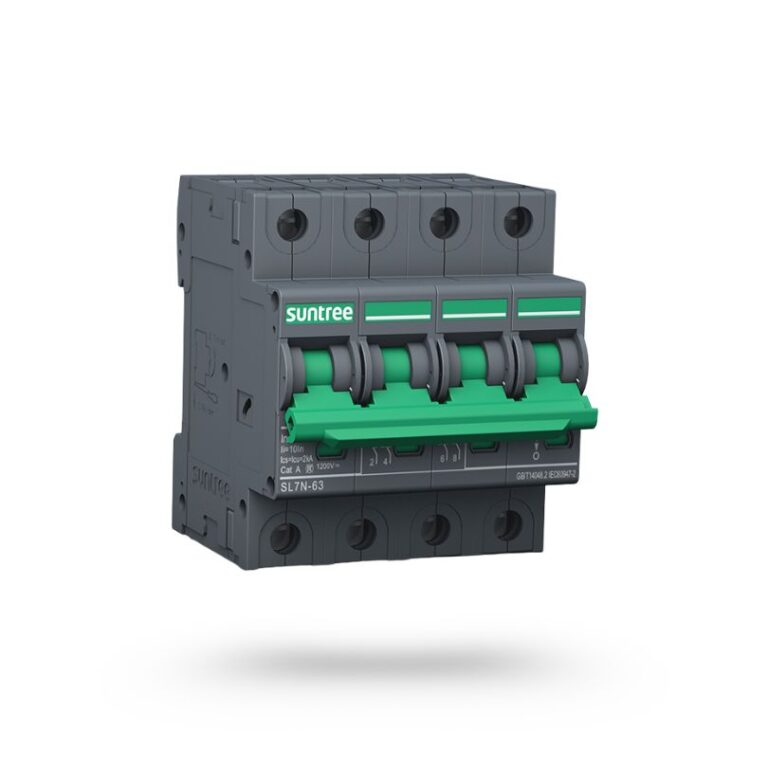

SUNTREE DC Miniature Circuit Breaker SL7N-63
DESIGN NUMBER
- DC non-polarized
- Low temperature rise
- VO (UL94) flame-retardant materials used for the case
- All current-carrying parts are copper
- ROHS compliant
- Versatile accessory options
- Instrumentation parts are all made of stainless steel
FUNCTION AND SCOPE OF APPLICATION
SL7N-63 series PV miniature circuit breaker is a current limiting circuit breaker with overload and short circuit protection, overload and short circuit protection for DC systems with voltage DC1200V and below.
Widely used in DC panels, DC distribution cabinets, DC convergence boxes, distribution box systems for energy storage, PV and wind power stations, and communication distribution box protection systems.
It can also be used for infrequent on/off conversion of lines under normal conditions.

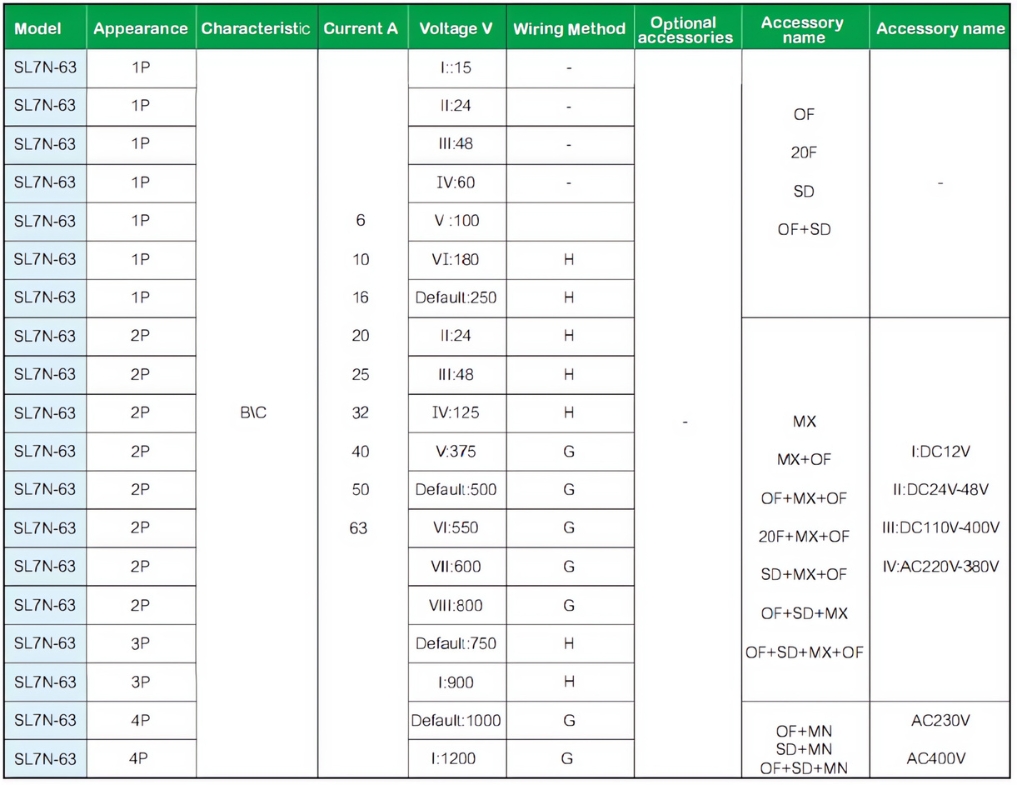

PRODUCT MODEL

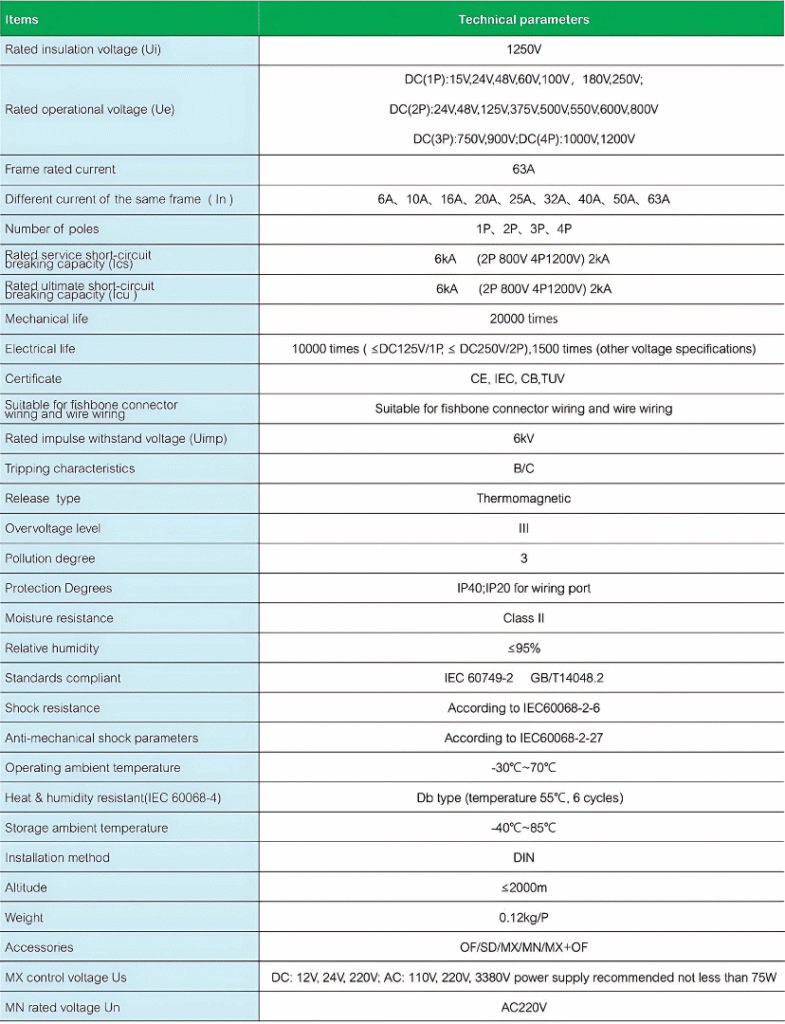

MAIN TECHNICAL PARAMETERS
