Suntree DC MCCB SM8-250HPV
Product Overview
- Suitable for large solar photovoltaic power plants
- This circuit breaker has overload long delay and short-circuit instantaneous protection functions, which are used to distribute electrical energy and protect the circuit and power equipment from overload. short circuit and other fault hazards
- High current. can be used to protect batteries
Installation Precautions
- In a medium without explosion risk and free of gases and dust(including conductive dust) sufficient to corrode metal and destroy insulation
- In the condition with no snow erosion
- It can be installed horizontally and vertically
- The magnetic field of the installation position shall not exceed 5 times the geomagnetic field in any direction;
- It should not be installed in flammable and explosive places
- There should be no significant impact and vibration at the installation place

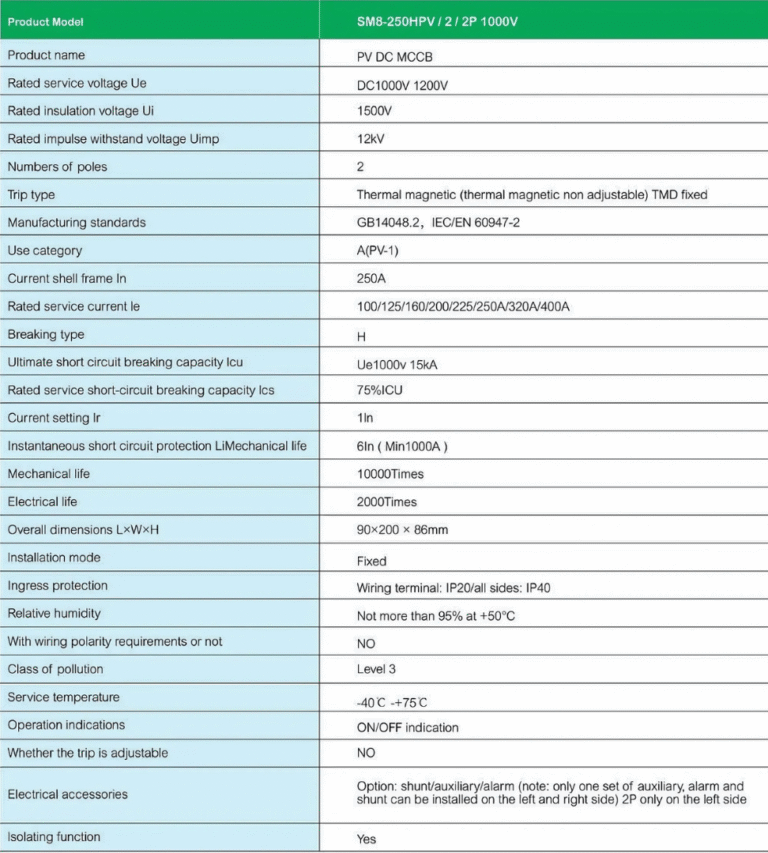

Electrical Parameters
Related Search
Suntree DC MCCB SM8-250HPV 2P 1000VDC (100A, 125A, 160A, 200A, 250A, 320A)
Suntree DC MCCB SM8-320HPV 2P 1000VDC (320A)
