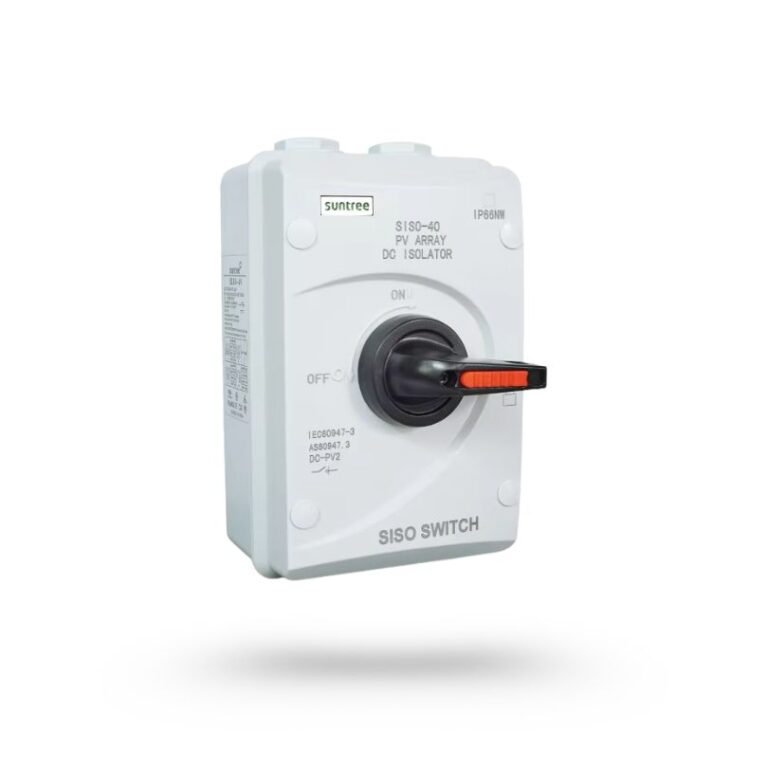

SUNTREE DC ISOLATOR SWITCH SISO-40 & SISO-40MD
PRODUCT ADVANTAGES
- UV resistance and VO flame retardant material
- Contact Silver Plating, silver layer thickness up to the industry’s highest standards
- Arcing Time in 3 ms
- No Polarity
- Lockable at OFF position
- Plug-in module design
INSTALLATION PRECAUTIONS
- MAXIMUM CABLE SECTION: 4-16mm2
- MC:IP66NW with panel MC4 connector top in and bottom out
ELECTRICAL PARAMETERS
|
Product Model
|
S1SO-40 (1000V)
|
|---|---|
|
Pole
|
2/4
|
|
Rated Operational Voltage/Ue(V)
|
600V-1500V
|
|
Rated Operational CurrenVln(A)
|
16A-55A
|
|
Rated Insulation Voltage/Ui(V)
|
1500
|
|
Rated Impulse withstand Voltage/Uimp(V)
|
8000
|
|
Mechanical Life
|
10000 times
|
|
Electrical Life
|
3000 times
|
|
Fire-retardant Enclosure Level
|
VO
|
|
Device Width x Height (mm)
|
97.6*179.6
|
|
Method of Mounting
|
wall-mounted
|
|
Mounting
|
Screw fixation
|
|
Fastening Torque of Terminals(N.m)
|
0.5-1.8
|
|
Location
|
Indoor or outdoor
|
|
Ambient Temperture
|
-40°Cto +85
°C
|
|
Altitude
|
below 2000m
|
|
Pollution Level
|
[I]
|
|
Installation Class
|
IP66
|
