Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC

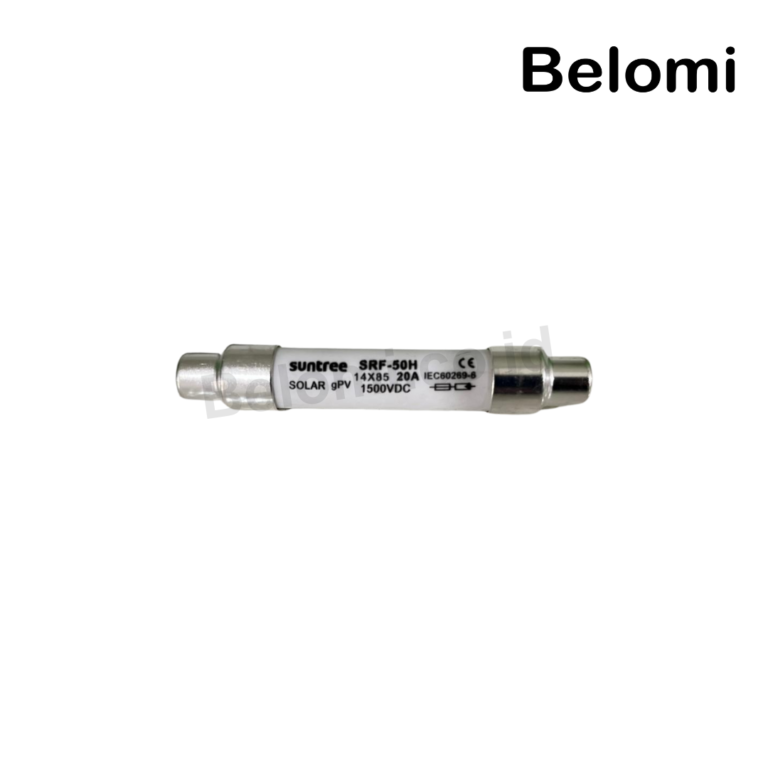

Suntree DC Fuse Link SRF-50H 20A 1500V

Suntree DC Fuse Link SRF-50H 20A 1500V
Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC

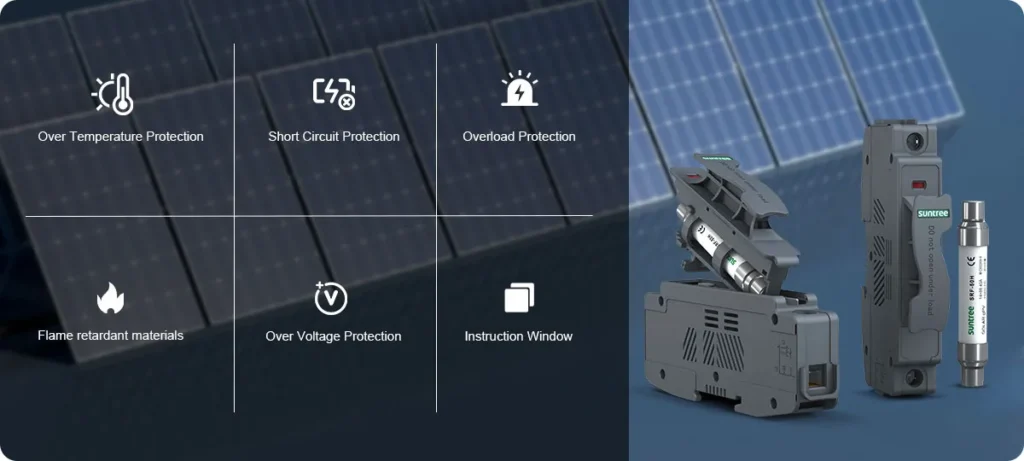

Product Overview

• Ventilation slot The ventilation slot and cooling chamberhave strong heat dissipation performance.
• Red copper terminal block Thickness up to 1.0mm.
• Indication window design Signal whether the fused core is fused or
   not (light on fused, off on normal)

Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC
Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC
Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC

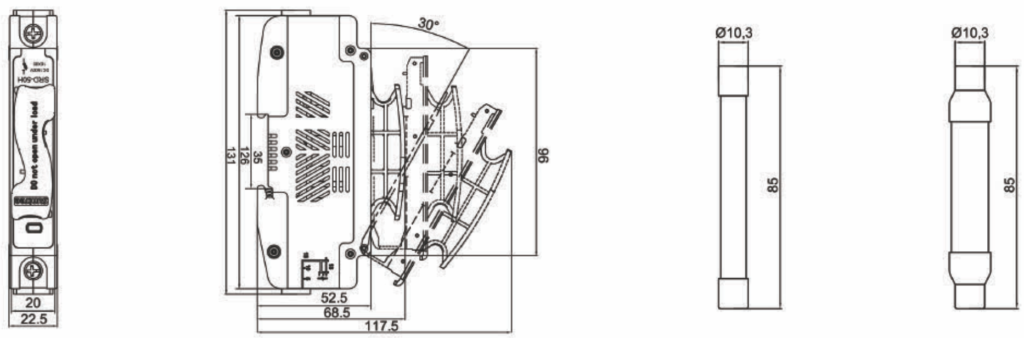

Dimensions

Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC

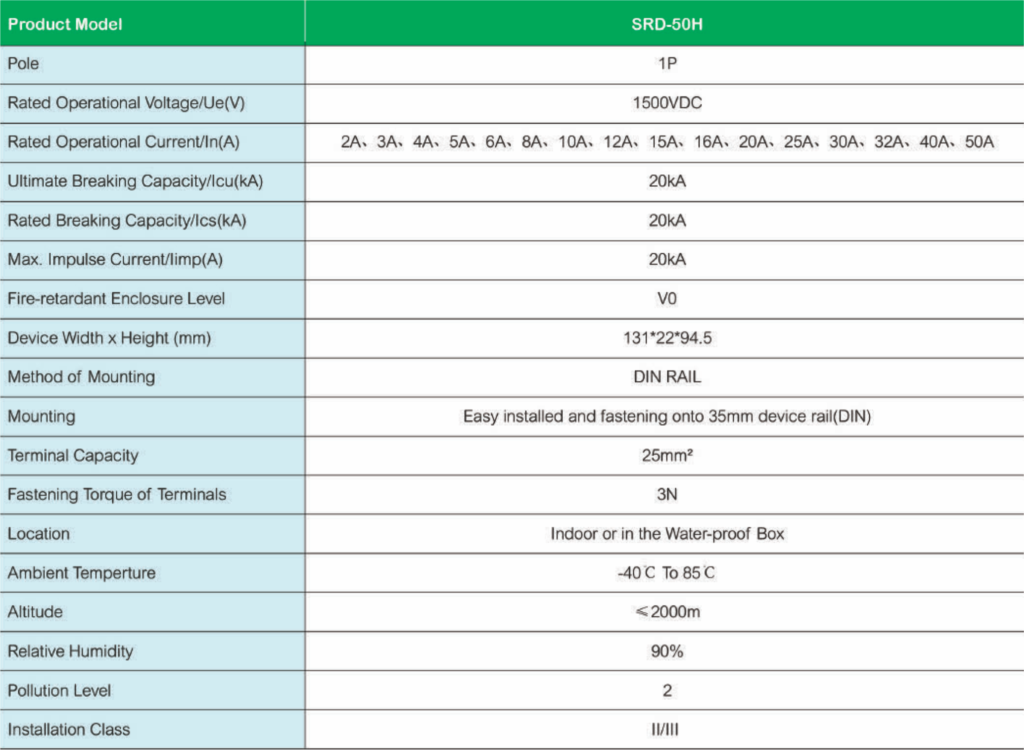

Technical Parameters

Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC
Download Brosur
Cek di Tokopedia

Related Search

Suntree DC Fuse Link SRD-50H 30-50A 1P 1500VDC
Suntree DC Fuse Link SRF-50H 20A 1500V
